Home / Valve / Ball Valve

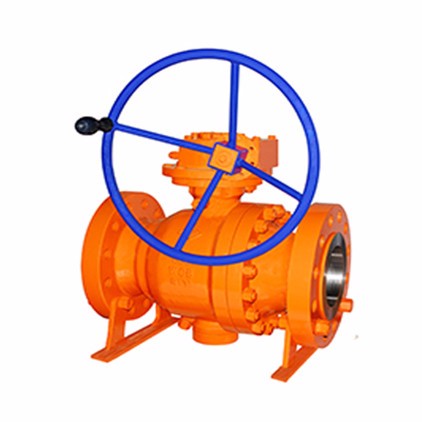

Cast Steel Trunnion Mounted Ball Valves Cast Steel Trunnion Mounted Ball Valves Cast Steel Trunnion Mounted Ball Valves Cast Steel Trunnion Mounted Ball Valves
Inquire Now Forged Steel Trunnion Mounted Ball Valves

product description

Valve Type: Cast Trunnion Mounted Ball Valve.
Valve Size: 2"- 24".
Pressure Rating: Class 150 – 600.
Body Material: Carbon Steel, Stainless Steel, Duplex Steel.
Trim Material: Carbon Steel, Stainless Steel, Duplex Steel.

Features:
Two Pieces Cast Steel Body,
Trunnion Mounted Ball, Full & Reduced Bore,
Anti-static Device, Blow-out Proof Stem,
Fire Safe Design, Emergency Sealant Injector (6” & larger).

Standards:
Design & Manufacture:ASME B16.34/API 6D
Face to Face(End to End)ASME B 16.10/API 6D
End FlangeASME B16.5
Butt welded endASME B16.25
TestAPI 6D
Fire Safe TestAPI 607/ API6 FA
SpecialNACE MR-01-75
