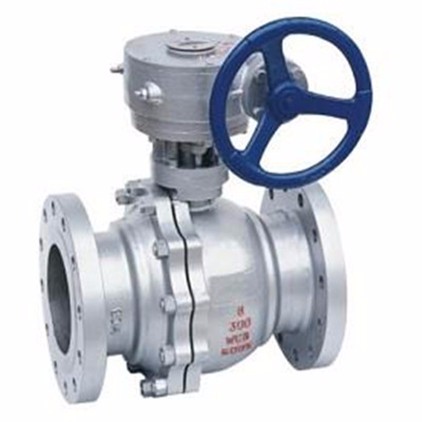

Gear Operated flange ball valve, as a kind of valves, is widely utilized in petrochemical industry and long-distance transport pipes. The closing part of ball valve is a ball with a hole. The ball turn with the stem to open or close the valve. Compared with other valves, the flow resistance of gear operated flange ball valve is minimum. When valve opened completely, the channel of the ball and valve body is equal to pipes, so that medium pass through without any loss. Compared with gate valve and globe valve, ball valve has small volume, light weight and convenient installment.



Gear Operated Flange Ball Valve Components Materials

No	Components	Materials
		GB	ASTM
1	Body	WCB	A216-WCB
2	Seal Ring	PTFE	PTFE
3	Ball	1C18Ni9Ti	SS304
4	Nut	35	A194-2H
5	Stud	35CrMoA	A193-B7
6	Bonnet	WCB	A216-WCB
7	Gasket	Flexible graphite+ss	B12.10-304F/.G
8	Packing	PTFE	PTFE
9	Packing Gland	WCB	A216-WCB
10	Stop Plate	25	A105
11	Retainer	65Mn	AISI 1066
12	Handle	K33	A47-667 Gr.32510
13	Stem	1Cr33	A276-410
14	Screw	35	A193-B7
15	Thrust Washer	PTFE	PTFE
