product description

L type three way ball valve (Q644F) is used to change the flow direction of medium. It can connect mutually perpendicular two pipelines. T type three way ball valve (Q645F) is utilized to divert, interflow and flow reversal.

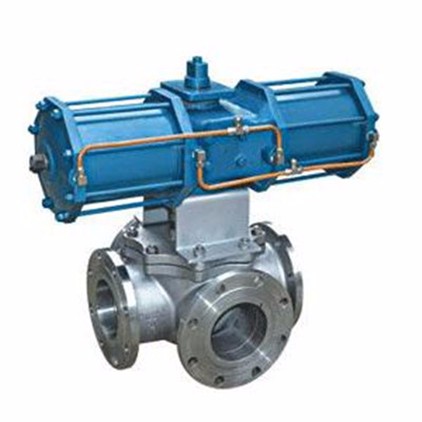

Pneumatic Three way Ball Valve Introduction

Three way ball valve can be divided into L type and T type. L type three way ball valve (Q644F) is used to change the flow direction and connect mutually perpendicular two pipelines. T type three way ball valve (Q645F) is utilized to divert, interflow and flow reversal, which can connect three pipelines or two pipelines. Three way ball valve usually adopts two valve seats, it can also utilize four valve seats as required.

Performance Parameter of Pneumatic Three way Ball Valve

Test Pressure	Nominal Pressure(Mpa)
Mpa	1.6	2.5	4.0	CL150	JIS10K
Shell	2.4	3.8	6.0	3.2	2.4
Seal	1.8	2.8	4.4	2.2	1.5
Air	0.5-0.7
Working Temperature	PTFE≤150℃ PTL≤300℃
Applicable Temperature	C: water, oil, gas; P: nitrose; R: acetate

Components Materials

Bonnet	WCB, CF8
Ball	WCB+Hcr, CF8
Stem	2Cr13, CF8
Seat	PTFE
Packing	PTFE

Dimension of Pneumatic Three way Ball Valve

Nominal Pressure	Nominal Diameter		L	L1	H	W	Weight(kg)
Mpa	mm	in	mm	mm	mm	mm	1.6	2.5	4.0	CL150	JIS10K
1.6 2.5 4.0 CL150 JIS10K	15	1/2	130	65	62	100	2.5	3.0	3.5	2.5	2.5
	20	3/4	150	75	68	160	3.0	3.5	4.5	3.0	3.6
	25	1	160	80	75	160	4.8	5.0	6	5.0	5.0
	32	1 1/4	180	90	85	200	6.5	7	8.5	7	7
	40	1 1/2	200	100	95	200	8.5	9	10.5	9	9
	50	2	230	115	110	250	11	12	14	12	11
	65	2 1/2	290	145	130	300	15	17	20	16	16
	80	3	310	155	155	400	21	22	32	21	22
	100	4	350	175	180	500	33	36	50	36	36
	125	5	400	200	250	600	65	70	80	68	70
	150	6	480	240	275	800	103	110	120	105	105
	200	8	580	290	325	1000	152	168	180	160	160
