product description

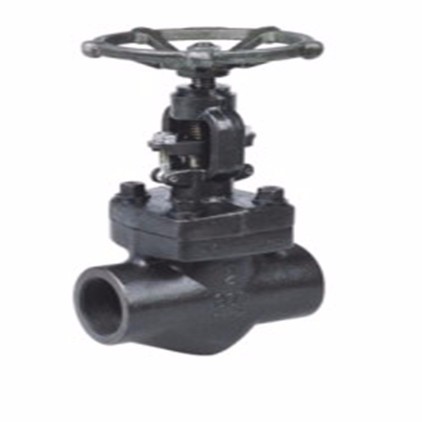

Valve Type: Forged Steel Globe Valve.
Valve Size: 1/2” - 2”.
Pressure Rating: Class 150 - 2500.
Standards:
| Design & Manufacture | API 602 |
| Inspection & Test | API 598 |
| Socket-weld Dimension | ASME B16.11 |
| End Threads Dimension | ASME B1.20.1 |
| Pressure-temperature Ratings | ASME B16.34 |
Standard Material Specifications
| Part Name | Material | |||
| 1 | Body | ASTM A105 | ASTM A 182 F304 | ASTM A182 F316 |
| 2 | Disc | ASTM A105 | ASTM A 182 F304 | ASTM A182 F316 |
| 3 | Stem | ASTM A182 F6 | ASTM A 182 F304 | ASTM A182 F316 |
| 4 | Bonnet | ASTM A105 | ASTM A 182 F304 | ASTM A182 F316 |
| 5 | Gland Flange | ASTM A105 | ASTM A 182 F304 | ASTM A182 F316 |
| 6 | Stem Nut | ASTM A276 410 | ||
| 7 | Hand Wheel | ASTM A197 | ||
