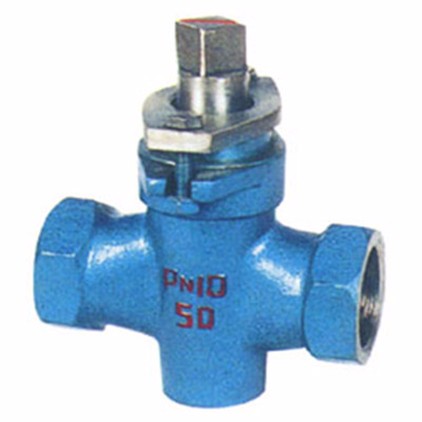

Two-way Internal Thread Stainless Steel Plug Valve Two-way Internal Thread Stainless Steel Plug Valve Two-way Internal Thread Stainless Steel Plug Valve Two-way Internal Thread Stainless Steel Plug Valve
Inquire Now Two-way Copper Core Plug Valve

product description

Two-way internal thread stainless steel plug valve is applicable for nitric acid and acetic acid.
Working temperature: ≤250℃

Medium & temperature
ModelNominal Pressure
PN(MPa)
Testing Pressure PS(MPa)		Applicable MediumWorking Temperature(℃)
ShellSealing
X13W-1.0P1.01.51.1Nitric acid, acetic acid≤250

Dimensions
Nominal Diameter
DN(mm)		Internal Thread
G		Dimensions(mm)
L□S□S1h2H
151/28530122699
203/490361634124
251110461838133
3211/4130551845152
4011/2150602655212
502170752874260
6521/2220903282295
80325010536125327
100430014046135425

Materials
ModelBodyPlugPacking GlandPacking
X13W-1.0PStainless steelStainless steelStainless steelOil immersed asbestos plate+
flexible graphite





RELATED PRODUCTS

Brass 2 Piece Side Entry Floating Ball Valve
Inquire Now
2 Piece Bronze Floating Ball Valve
Inquire Now
ASTM B148 1 Piece Floating Ball Valve
Inquire Now
Cast Steel Floating Ball Valves
Inquire Now
Pneumatic Three Way Ball Valves
Inquire Now

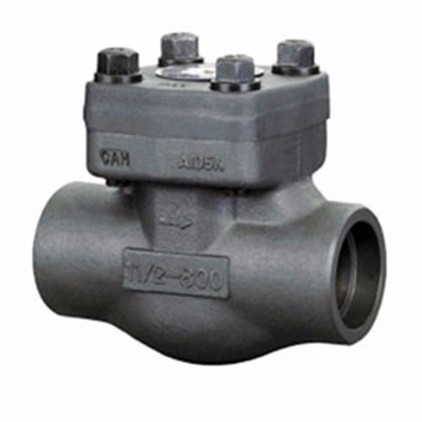

Forged Steel Check Valves
