product description

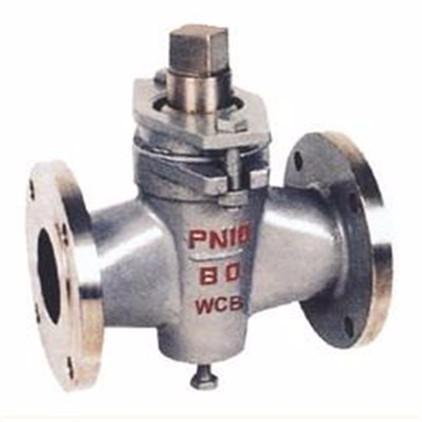

Two-way cast steel plug valve utilizes a cock with hole as its closure member. Rotating the cock can close the vale, having the advantages of good sealing, long service life.

Characteristics
1.  Import and export terminal of two-way cast steel plug valve uses dual grooves sealing ring. When rotating cock, sealing specific pressure of sealing pair changes, until valve closed or opened completely. Producing adequate sealing specific pressure ensure the zero leakage of sealing pair.
2.  Dual grooves sealing ring can fix PTFE liner inside body. It can also absorb micro deformation of liner caused by temperature difference. Otherwise, liner and cock cause strong wiping action, highly improving service life of sealing ring.
3. Upper cock shaft of plug valve consist of PTFE diaphragm, O-ring and regulating gasket. It can adjust sealing specific pressure to rotate cock smoothly and ensure sealing of import and export terminal.
4. The whole sealing process of plug valve can be considered that has no relationship with pressure inside pipelines.
5. PTFE liner chooses different packings for applicable temperature and medium, having good lubrication and long service life.

Standards
GB/T12240, API 599, API6D
Actuation mode: manual, gear operated, electric operated

Pressure & medium
ModelNominal Pressure
PN(MPa)
Testing Pressure PS(MPa)Applicable MediumWorking Temperature(℃)
ShellSealing
X43W-1.0C1.01.51.1Gas, oil≤200


Dimensions

ModelNominal Diameter
DN(mm)
Dimensions(mm)
LDD1D2fbz-φd□shH
X43W-1.0C15809565452144-φ14142699
209010575552164-φ141434124
2511011585652164-φ141738133
32115135100782184-φ181845152
40150145110853184-φ182655212
501701601251003204-φ182874260
652201801451203204-φ183282295
802501951601353224-φ184095327
1003002151801553268-φ1845135425
1253502452101853248-φ1854154482
1504002802402103248-φ2362172512
2004503352952653248-φ2375195605
25053039035032032812-φ2385230660
30058044040036833012-φ23100263760
