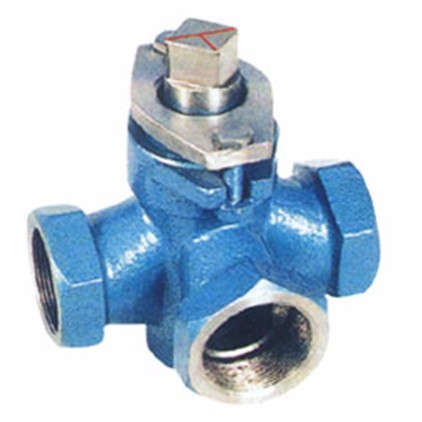

product description
| Model | Nominal Pressure PN(MPa) | Testing Pressure PS(MPa) | Applicable Medium | Working Temperature（℃） | |
| Shell | Sealing | ||||
| X14W-1.0P | 1.0 | 1.5 | 1.1 | Nitric acid, acetic acid | ≤100 |
| Nominal Diameter DN(mm) | Pipe Thread G | Dimensions(mm) | |||
| H | L | h | □S | ||
| 15 | 1/2 | 117 | 85 | 30 | 12 |
| 20 | 3/4 | 126 | 90 | 34 | 16 |
| 25 | 1 | 160 | 110 | 42 | 18 |
| 32 | 11/4 | 176 | 130 | 48 | 18 |
| 40 | 11/2 | 210 | 150 | 64 | 26 |
| 50 | 2 | 238 | 170 | 76 | 28 |
| 65 | 21/2 | 250 | 220 | 80 | 30 |
| 80 | 3 | 340 | 250 | 115 | 38 |
| 100 | 4 | 350 | 300 | 125 | 42 |
| Model | Body | Plug | Packing Gland | Packing |
| X14W-1.0P | Stainless steel | Stainless steel | Stainless steel | Oil immersed asbestos plate+ flexible graphite |
